multicolor WS2801 bullet led pixelstring light
description:

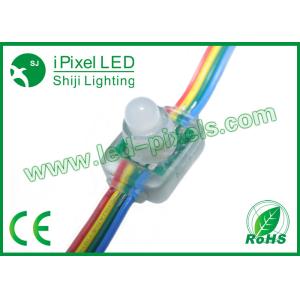

RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded into a 'dot' of silicone. The dots are waterproof and rugged. There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick. They're typically used to make outdoor signs. Compared to our other 20mm LED dots, these are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.
1.This pixel LED is 50pcs per string.8cm wire between each LED,wire size:20AWG.Punching Diameter is 12mm.
2.We have three different IC Model for this LED,Please note different IC have different Wire define.
3.Controller:we usually select SD Controller,you also could use DMX controller which could support WS2801 or LPD6803 chip.
4.it works with DC5V only,and supply the power to LED chain every string(50pcs max),make sure the Voltage is the same in both side of LED chain.
5.This product can carry out effects of full-color running water,chasing and scanning ,it is easy installation, high brightness, safe and energy conservation, long lifespan,low brightness declines,Widely used in LOGO,advertisement bill board exposed luminous characters,painted screen, can replace the traditional neno signs, the spacing between lamps can be chosed according to the building height.
Specification:
| Model NO. | SJ-1515-CRGB |
| Power Consumption | 0.3W |
| Work Voltage | DC5V |
| Beam Angle | ≥120 |
| LED Quantity | 1pcs |
| Color | Full color(ICRGB) |
| chip material | epistar |
| Waterproof Grade | IP66 |
| Work Temperature | -40-60°C |
| Life-span | 50,000H |
| Certificate | CE&RoHS |
| Warranty | 2 years |
Application:
1. Channel Letters Backlighting, indoor /outdoor.
2. Advertisement Signs Backlighting.
3. Advertisement Light Boxes Backlighting .
4. Logo backlighting .
5. Advertisement billboards backlighting .
6. Indoor / outdoor illumination.
